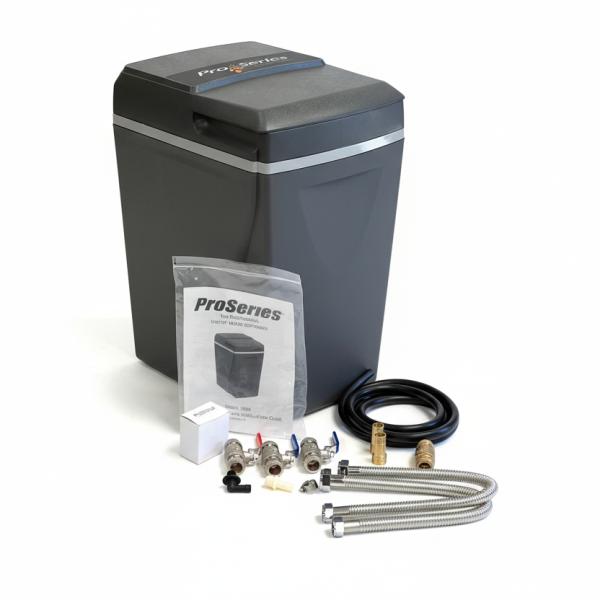

Pro Series 2300 water softener

Suitable for larger family homes
Peak flow rate of 80 litres per minute
Built in auto flushing filter to 20 micron
Up to 4m³ of soft water per day
20 minute regeneration
10 Year Warranty option*
Pro Series Water Softeners brochure
Pro Series Controller Settings

The Pro Series water softeners have been developed using all of the 53 years of engineering excellence at our disposal and are wholly manufactured in our dedicated factory using the latest robotics and quality control standards. Our patented vessel design ensures great water quality throughout the range of flow as well as efficient use of salt and water.

Specifications
Overall Height
Inlet/Outlet Height
Depth
Depth Including Connections
Width
Overflow Height
Width Including Connections
Media Volume
Max. Feed Water Hardness
Max. Ferrous Iron
Min. pH
Salt Usage Per Regeneration
Water Usage Per Regeneration
Capacity (max @ 300mg/l hardness)
Nominal Pressure Range
Working Pressure (max. daytime)
Min. Pressure
Water Temp. Range
Ambient Temp. Range
Flow Rage @ 1 Bar
Peak Flow Rate
In/Out Connection Size
Waste Connection Size
Overflow Connection Size
Power Requirement
Salt Type
Salt Storage Capacity
Shipping Weight
In/Out Pipes Supplied
Waste Pipe Supplied
B/F Pipe Supplied

Pro Series 2300
640mm
585mm
480mm
502mm
380mm
465mm
380mm
20 litres
1200 mg/l
10 mg/l
7
Variable based on water demand
53 litres (Default)
4900 litres
1.4 - 8.3 Bar
5 Bar
1.4 Bar
4 - 49°C
4 - 49°C
45 lpm
80 lpm
1" Threaded
16mm Barbed
13mm Barbed
220 VAC/50 HZ
Tablet
40kg
39kg
Pair ¾ ” Bore 1” to ¾ “Female Megaflow Super Water Flex. Stainless steel hoses. 600 mm long
Semi rigid 13mm x 1200mm
Flexible 16mm x 2400mm

Pro Series 2300

Pro Series Water Softeners
